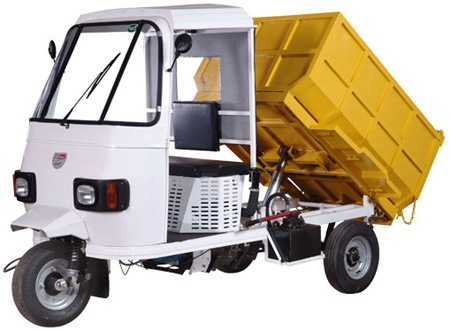

Passenger Carriers :: "Hydraulic Loader"
Information Diesel Petrol LPG CNG
Engine GL 400 BS III A ENGINE LGA 340 ENGINE LGA 340 ENGINE LGA 340 ENGINE
Type Single Cylinder, 4 Stroke Diesel Engine Single Cylinder, 4 Stroke Petrol Engine, OHC. Single Cylinder, 4 Stroke Petrol Engine, OHC. Single Cylinder, 4 Stroke Petrol Engine, OHC.
Bore/Stroke, mm 86 mm / 68 mm 82 mm / 64 mm 82 mm / 64 mm 82 mm / 64 mm
Displacement 395 cc. 338 cc. 338 cc. 338 cc.
Max. Power 7.5 H.P. @ 3600 RPM 9.92 H.P. @ 4400 RPM 8.44 H.P @ 4400 RPM 8.44 H.P. @ 4400 RPM
Max. Torque 17 Nm @ 2200 RPM 20 Nm @ 3200 RPM 20 Nm @ 3200 RPM 20 Nm @ 3200 RPM
Air Cleaner Dry Type Dry Type Dry Type Dry Type
Oil Filter Spinon Spinon Spinon Spinon
Oil Quantity 1.3 Ltr. 1.7 Ltr. 1.7 Ltr. 1.7 Ltr.
Cooling System Forced Air Cooled Forced Air Cooled Forced Air Cooled` Forced Air Cooled
Transmission
Type Constant mesh, Mechanical Selective. Constant mesh, Mechanical Selective. Constant mesh, Mechanical Selective. Constant mesh, Mechanical Selective.
No. of Gears 4 Forward and 1 Reverse 4 Forward and 1 Reverse 4 Forward and 1 Reverse 4 Forward and 1 Reverse
Gear Ratios 1st 5 : 1 1 ST. 5 : 1 1 ST. 5 : 1 1 ST. 5 : 1
  2 ND. 2.93 : 1 2 ND. 2.93 : 1 2 ND. 2.93 : 1 2 ND. 2.93 : 1
  3 RD. 1.84 : 1 3 RD. 1.84 :1 3 RD. 1.84 :1 3 RD. 1.84 :1
  4 TH. 1.12 : 1 4 TH. 1.12 :1 4 TH. 1.12 :1 4 TH. 1.12 :1
Clutch Multiple Wet Type Multiple Wet Type Multiple Wet Type Multiple Wet Type
Front Axle Bolted Axle on leading Links Bolted Axle on leading Links Bolted Axle on leading Links Bolted Axle on leading Links
Rear Axle Fully Floating Axle Shaft Fully Floating Axle Shaft Fully Floating Axle Shaft Fully Floating Axle Shaft
Steering Handle Bar Handle Bar Handle Bar Handle Bar
Suspension
Front Trailing Link with Hydraulic Shock Absorber Trailing Link with Hydraulic Shock Absorber Trailing Link with Hydraulic Shock Absorber Trailing Link with Hydraulic Shock Absorber
Rear 2 Nos. Semi Elliptical Leaf Spring with Hydraulic Shock Absorber 2 Nos. Semi Elliptical Leaf Spring with ydraulic Shock Absorber 2 Nos. Semi Elliptical Leaf Spring with ydraulic Shock Absorber 2 Nos. Semi Elliptical Leaf Spring with ydraulic Shock Absorber
Tyres
  4.50 - 10 - 8 pr 4.50 - 10 - 8 pr. 4.50 - 10 - 8 pr. 4.50 - 10 - 8 pr.
Brakes
Service Brake Antidive All Three  Wheels Hydraulic Self Adjusting Brakes with T.M.C. Antidive All Three  Wheels Hydraulic Self Adjusting Brakes with T.M.C. Antidive All Three  Wheels Hydraulic Self Adjusting Brakes  with T.M.C. Antidive All Three  Wheels Hydraulic Self Adjusting Brakes  with T.M.C.
Front Drum Brake Drum Brake Drum Brake Drum Brake
Rear Drum Brake Drum Brake Drum Brake Drum Brake
Parking Brake Mechanical on Rear Brake Mechanical on Rear Brake Mechanical on Rear Brake Mechanical on Rear Brake
Electrical System
system Voltage 12 V 12 V 12 V 12 V
Battery 12 V 50 Ah Multi Plate Lead Acid Motorized, Single Glade 12 V 35 Ah Multi Plate Lead Acid Motorized 12 V 35 Ah Multi Plate Lead Acid Motorized 12 V 35 Ah Multi Plate Lead Acid Motorized
Fuel Tank
Capacity 7 Ltr. 7 Ltr. 3 Ltr.Petrol,
12 Ltr. GAS@ 6 Bar,
30° Centigrade
3 Ltr. Petrol,
5 Kg.GAS @ 200 Bar,
15° Centigrade
Fuel Consumption 35 + / - 2 Km / Ltr.* 5 Kg. @ 200 Bar, 15° Centigrade  5 Kg. @ 200 Bar, 15° Centigrade 5 Kg. @ 200 Bar, 15° Centigrade
Wheel Base
  2000 mm 2000 mm 2000 mm 2000 mm
Minimum Ground Clearance
  175 mm 175 mm 175 mm 175 mm
Wheel Trak
  1100 mm 1100mm 1100 mm 1100 mm
Gvw
  855 Kg 995 Kg 995 Kg 995 Kg
Payload
  500 500 Kg. 500 Kg. 500 Kg.
Over All Dimensions
Over All Width 1120 mm 1120 mm 1120 mm 1120 mm
Over All Length 2800 mm 2800 mm 2800 mm 2800 mm
Overall Height 1885 mm 1885 mm 1885 mm 1885 mm
Overall Weight 475 Kg - - -
Cargo Area
  1480x1065x615 1480x1065x615 1480x1065x615 1480x1065x615
Bucket Capacity
  1M3 1480x1065x615 1480x1065x615 1480x1065x615
Cylinder Capacity
  Telescopic Single Acting Cylinder Telescopic Single Acting Cylinder Telescopic Single Acting Cylinder Telescopic Single Acting Cylinder
Working Passage 1DD BAR 1 DD BAR 1 DD BAR 1 DD BAR
Oil Tank 8 Ltr. 8 Ltr. 8 Ltr. 8 Ltr.
